The image Package

image defines the Image interface and the concrete pixel-buffer types (RGBA, NRGBA, Gray, Paletted) every Go image works with. image/png and image/jpeg add format-specific encoding and decoding; image/draw adds compositing one image onto another.

image.NewRGBA allocates a blank canvas from a Rectangle. Set writes one pixel; At reads one back, both through the same color.Color interface.

img := image.NewRGBA(image.Rect(0, 0, 4, 4))
img.Set(1, 1, color.RGBA{R: 255, A: 255})

fmt.Println(img.Bounds())
fmt.Println(img.At(1, 1))

Bounds reports the canvas as a half-open rectangle, (0,0)-(4,4) for 4x4 pixels. The pixel just set reads back as {255 0 0 255}: red, no green, no blue, fully opaque.

Terminal

(0,0)-(4,4)
{255 0 0 255}

Examples

NewRGBA allocates a blank canvas; Set writes one pixel at a time. png.Encode is lossless, so the same pixels come back byte-for-byte on decode.

img := image.NewRGBA(image.Rect(0, 0, 100, 100))
for y := 0; y < 100; y++ {
    for x := 0; x < 100; x++ {
        img.Set(x, y, color.RGBA{R: uint8(x * 2), G: uint8(y * 2), B: 120, A: 255})
    }
}

f, err := os.Create("gradient.png")
if err != nil {
    log.Fatal(err)
}
defer f.Close()

if err := png.Encode(f, img); err != nil {
    log.Fatal(err)
}
fmt.Println("wrote", "gradient.png")

Output

wrote gradient.png

image.Decode picks the format automatically by sniffing the header, but only formats registered by an imported package are recognized. image/png and image/jpeg register themselves in their own init functions, so a blank import is enough when the decoded value itself isn't needed by name.

import (
    "image"
    _ "image/jpeg"
    _ "image/png"
)

f, err := os.Open("photo.png")
if err != nil {
    log.Fatal(err)
}
defer f.Close()

img, format, err := image.Decode(f)
if err != nil {
    log.Fatal(err)
}
fmt.Println(format, img.Bounds())

Output

png (0,0)-(1200,800)

Any image.Image decoded from one format can be re-encoded in another; the decode step doesn't care which package produced the bytes. A small, sharp-edged image like this gradient can end up larger as JPEG than PNG, since JPEG's block-based compression has a fixed per-block cost that a photograph's noise usually hides.

img, format, err := image.Decode(pngFile)
if err != nil {
    log.Fatal(err)
}
fmt.Println("decoded format:", format)

out, err := os.Create("converted.jpg")
if err != nil {
    log.Fatal(err)
}
defer out.Close()

jpeg.Encode(out, img, &jpeg.Options{Quality: 80})

Output

decoded format: png

draw.Src overwrites the destination outright; draw.Over alpha-blends instead, the standard way to layer a translucent shape onto an existing image. color.NRGBA takes R/G/B/A as independent values; color.RGBA's fields are already alpha-premultiplied, so setting them directly like this Over example would produce broken colors.

base := image.NewRGBA(image.Rect(0, 0, 100, 60))
draw.Draw(base, base.Bounds(), &image.Uniform{C: color.RGBA{30, 30, 40, 255}}, image.Point{}, draw.Src)

overlay := &image.Uniform{C: color.NRGBA{R: 255, G: 200, B: 0, A: 120}}
box := image.Rect(20, 15, 80, 45)
draw.Draw(base, box, overlay, image.Point{}, draw.Over)

fmt.Println(base.At(10, 10)) // outside the box: untouched
fmt.Println(base.At(40, 30)) // inside the box: blended

Output

{30 30 40 255}
{136 110 21 255}

No library draws a fractal directly; the image is just a canvas colored one pixel at a time by escape-time iteration, the same At/Set primitives as any other image.

img := image.NewRGBA(image.Rect(0, 0, 320, 200))

for py := 0; py < 200; py++ {
    y := (float64(py)/200)*2.4 - 1.2
    for px := 0; px < 320; px++ {
        x := (float64(px)/320)*3.2 - 2.2
        img.Set(px, py, mandelbrotColor(complex(x, y)))
    }
}

f, _ := os.Create("mandelbrot.png")
defer f.Close()
png.Encode(f, img)

Output

wrote mandelbrot.png

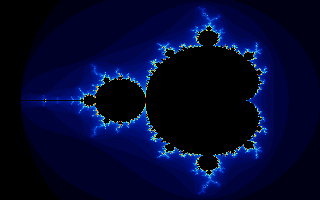

A 320 by 200 Mandelbrot set, rendered pixel by pixel with image.NewRGBA and encoded as PNG

Output of the Mandelbrot set example above.

image package core

Function	Description
type Image interface{ ColorModel() color.Model; Bounds() Rectangle; At(x, y int) color.Color }	The interface every image type satisfies: a color model, a bounding rectangle, and per-pixel lookup.
type Point struct{ X, Y int }	A single coordinate.
Pt(X, Y int) Point `image.Pt(10, 20)`	Shorthand for Point{X, Y}.
type Rectangle struct{ Min, Max Point }	A rectangle spanning [Min, Max), Max exclusive on both axes.
Rect(x0, y0, x1, y1 int) Rectangle `image.Rect(0, 0, 100, 60)`	Shorthand for a Rectangle with Min{x0,y0} and Max{x1,y1}.
(Rectangle) Dx() int / Dy() int	The rectangle's width and height in pixels.
(Rectangle) In(r Rectangle) bool	Reports whether the rectangle is entirely within r.
NewRGBA(r Rectangle) *RGBA `image.NewRGBA(image.Rect(0, 0, 100, 60))`	An in-memory, alpha-premultiplied 8-bit-per-channel canvas.
NewNRGBA(r Rectangle) *NRGBA	Like NewRGBA, but channels aren't alpha-premultiplied.
`color.RGBA`'s fields are alpha-premultiplied: each of R, G, and B is already scaled by A/255, so a fully transparent red pixel is `{0, 0, 0, 0}`, not `{255, 0, 0, 0}`. Setting R higher than A directly, as in `color.RGBA{R: 255, A: 120}`, describes a color that can't exist and produces visibly wrong results once blended. `color.NRGBA` holds the same four channels without premultiplying them, the type to reach for whenever R, G, B, and A are being set as independent values, e.g. a translucent overlay color coming from user input or a design tool. `color.RGBA{R: 255, A: 120} // invalid: R can't exceed A once premultiplied color.NRGBA{R: 255, A: 120} // correct: converted to premultiplied form automatically`
NewGray(r Rectangle) *Gray	An 8-bit grayscale canvas.
NewPaletted(r Rectangle, p color.Palette) *Paletted	A canvas backed by a fixed color palette; what GIF frames use.
(*RGBA) Set(x, y int, c color.Color) `img.Set(1, 1, color.RGBA{R: 255, A: 255})`	Writes a pixel, converting c to the image's own color model.
type Uniform struct{ C color.Color }	An infinite image of one solid color, useful as a fill source for image/draw.
Decode(r io.Reader) (Image, string, error)	Decodes an image in any registered format, returning the format name.
DecodeConfig(r io.Reader) (Config, string, error)	Reads only the header: dimensions and color model, without decoding pixel data.
RegisterFormat(name, magic string, decode func(io.Reader) (Image, error), decodeConfig func(io.Reader) (Config, error))	Registers a format's decoder; called by each format package's own init, e.g. image/png's.
type Config struct{ ColorModel color.Model; Width, Height int }	An image's dimensions and color model without its pixel data.
ErrFormat error	Returned by Decode when no registered format recognizes the input.

image/color

Function	Description
type Color interface{ RGBA() (r, g, b, a uint32) }	The interface every color type satisfies; values are alpha-premultiplied and scaled to 16 bits.
type Model interface{ Convert(c Color) Color }	Converts an arbitrary Color into one image's own color representation.
type RGBA struct{ R, G, B, A uint8 }	8-bit color, alpha-premultiplied.
`color.RGBA`'s fields are alpha-premultiplied: each of R, G, and B is already scaled by A/255, so a fully transparent red pixel is `{0, 0, 0, 0}`, not `{255, 0, 0, 0}`. Setting R higher than A directly, as in `color.RGBA{R: 255, A: 120}`, describes a color that can't exist and produces visibly wrong results once blended. `color.NRGBA` holds the same four channels without premultiplying them, the type to reach for whenever R, G, B, and A are being set as independent values, e.g. a translucent overlay color coming from user input or a design tool. `color.RGBA{R: 255, A: 120} // invalid: R can't exceed A once premultiplied color.NRGBA{R: 255, A: 120} // correct: converted to premultiplied form automatically`
type NRGBA struct{ R, G, B, A uint8 }	8-bit color, not alpha-premultiplied; the type to reach for when specifying R/G/B independently of A.
type Gray struct{ Y uint8 }	8-bit grayscale.
type Alpha struct{ A uint8 }	8-bit alpha only, no color.
RGBAModel, NRGBAModel, GrayModel, AlphaModel Model `color.GrayModel.Convert(c)`	Predefined Models matching each color type above.
type Palette []Color	An ordered set of colors, e.g. the fixed palette a GIF frame draws from.
(Palette) Index(c Color) int	Returns the palette entry closest to c.
(Palette) Convert(c Color) Color	Returns the closest palette entry itself, not just its index.

image/png

Function	Description
Encode(w io.Writer, m image.Image) error	Writes m to w as a PNG. Lossless; output size depends only on compression, not a quality setting.
Decode(r io.Reader) (image.Image, error)	Decodes a PNG.
DecodeConfig(r io.Reader) (image.Config, error)	Reads a PNG's dimensions and color model without decoding pixel data.
type Encoder struct{ CompressionLevel CompressionLevel }	Use Encoder.Encode instead of the package-level Encode to control compression.
DefaultCompression, NoCompression, BestSpeed, BestCompression CompressionLevel	The CompressionLevel values Encoder.CompressionLevel accepts.

image/jpeg

Function	Description
Encode(w io.Writer, m image.Image, o *Options) error `jpeg.Encode(w, img, &jpeg.Options{Quality: 80})`	Writes m to w as a JPEG; a nil Options uses the default quality.
type Options struct{ Quality int }	Quality from 1 to 100; higher keeps more detail at a larger file size.
Decode(r io.Reader) (image.Image, error)	Decodes a JPEG. The concrete type is usually *image.YCbCr, JPEG's native color model.
DecodeConfig(r io.Reader) (image.Config, error)	Reads a JPEG's dimensions and color model without decoding pixel data.
type FormatError string	The error type Decode returns for malformed JPEG data.

image/draw

Function	Description
Draw(dst Image, r Rectangle, src image.Image, sp Point, op Op) `draw.Draw(dst, r, src, sp, draw.Over)`	Copies src onto dst within r, aligning src's sp to r's top-left corner.
Src, Over Op	Src overwrites dst outright; Over alpha-blends src on top of dst's existing pixels.
type Image interface{ image.Image; Set(x, y int, c color.Color) }	The mutable subset of image.Image that Draw requires as a destination.
DrawMask(dst Image, r Rectangle, src image.Image, sp Point, mask image.Image, mp Point, op Op)	Like Draw, but mask's alpha channel scales src's contribution per pixel.
type Drawer interface{ Draw(dst Image, r Rectangle, src image.Image, sp Point) }	The interface FloydSteinberg and other ditherers implement.

Gotchas

image.Decode only recognizes formats registered by an imported package. Forgetting _ "image/jpeg" or _ "image/png" makes it fail with image: unknown format even on a well-formed file.
image.Image has no Set method, only At. Mutating pixels needs a concrete type like *image.RGBA, or the narrower draw.Image interface that adds Set back.
JPEG is lossy. Decoding a JPEG, editing it, and re-encoding it degrades quality further each round trip; PNG round-trips losslessly.
jpeg.Decode usually returns a *image.YCbCr, not *image.RGBA, since that's JPEG's native color model. Calling At still works through the Image interface either way.
